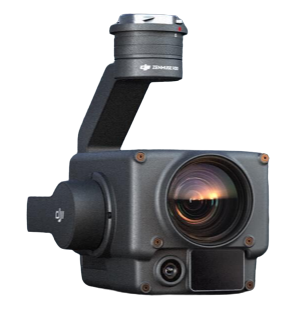

DJI Zenmuse H20 Series 20 MP Zoom Camera
zenmuse-h20-series H20T

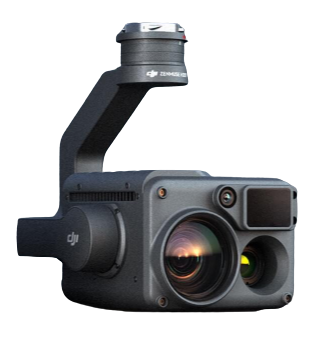

DJI Zenmuse H20 Series H20 and H20T Thermal Drone Camera

Dual thermal and RGB sensor cameras with a resolution of 20 MP

This multisensor camera transforms what we understand by operational efficiency into missions. Its integrated design and unique intelligence offer unprecedented imaging capabilities for a variety of professional uses.

All the sensors you need in one

Capture everything, both up close and far, in real or thermal colors. Measure the distance to which an object is located up to 1200 m thanks to the integrated laser rangefinder (LRS). This powerful onboard charge unleashes advanced smart capabilities for DJI industrial drone rigs.

Powerful zoom camera
  • 23 × hybrid optical zoom, max. 200 ×
  • 1 / 1.7 ”20MP CMOS sensor
  • Video resolution: 4K / 30fps
Everything under control. Wide angle camera
  • Equivalent focal length: 24mm,
  • DFOV: 82.9 °
  • 1 / 2.3 ”12MP CMOS sensor
Accurate distance data. Laser range finder
  • Range: 3-1200 m
    Accuracy: ± (0.2 m + D × 0.15%)
Saving distances. Powerful zoom camera
  • 23 × hybrid optical zoom, max. 200 ×
  • 1 / 1.7 ”20MP CMOS sensor
  • Video resolution: 4K / 30fps
See the invisible. Radiometric thermal camera
  • DFOV: 40.6 °
  • Resolution: 640 × 512
  • Frame rate: 30 fps
  • Thermal sensitivity: ≤50mk at f1.0 (NEDT)
