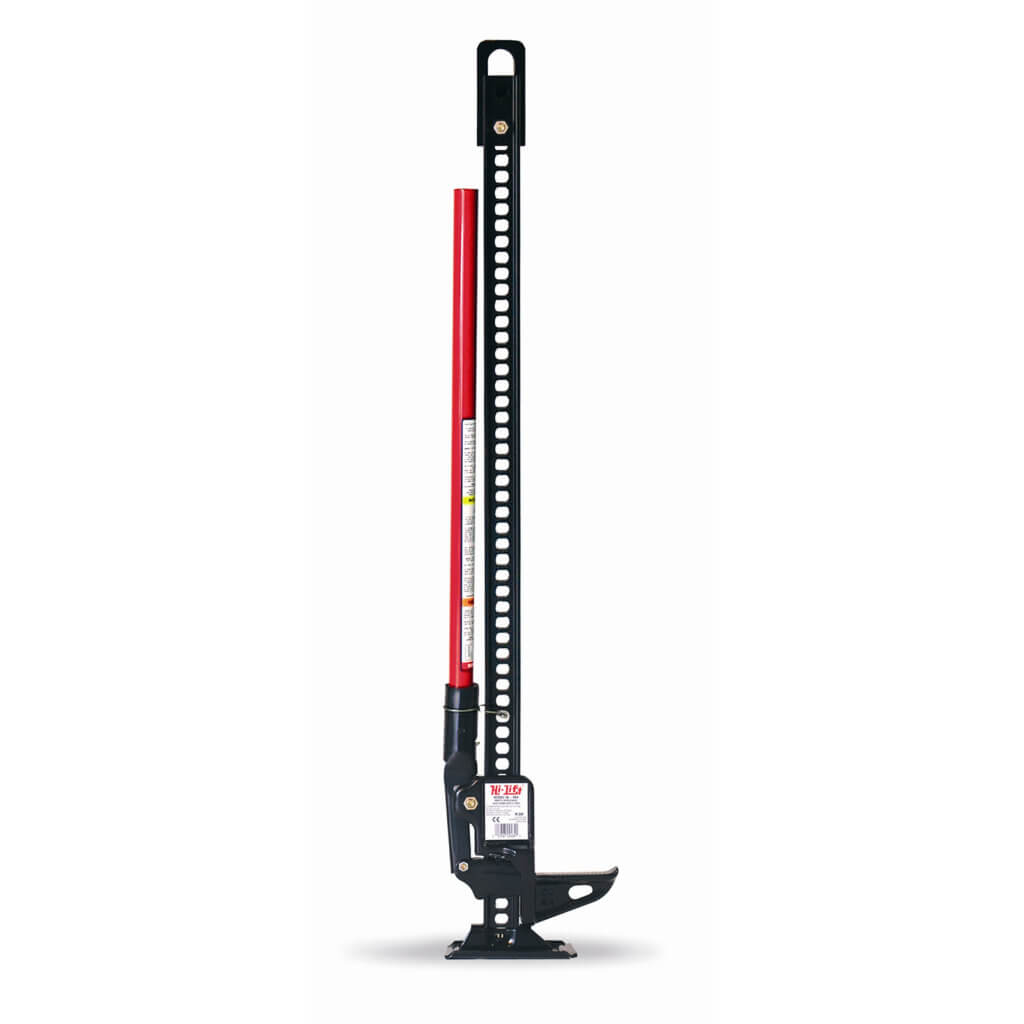

Hi-Lift® Cast/Steel Jack
The HI Lift cast and steel jack is identical to the all-cast jack except for four stamped high-strength steel elements. Because we stamp and shape the components in-house, we can provide the jack at a lesser price while maintaining the strict quality criteria that every Hi-Lift product must fulfil.
- Parts are cast and stamped steel.
- Capacity tested at 7000lb (3175.14kg).
- Height options include 36″, 42″, 48″, and 60″. Lifts, Winches, Clamps, and More (91, 107, 122, & 152cm)
- ASME B30.1-2015 relevant requirements were tested and certified.
Specifications
|
HL-364 |
HL-424 |
HL-484 |
HL-604 |
|
|
Size |
36” (91 cm) |
42” (107 cm) |
48” (122 cm) |
60” (122 cm) |
|
Min. Lift Height |
4.5″ (11.43 cm) |
4.5″ (11.43 cm) |
4.5″ (11.43 cm) |
4.5″ (11.43 cm) |
|
Max. Lift Height |
27″ (68.58 cm) |
32″ (81.28 cm) |
37.24″ (94.59 cm) |
48.25″ (123.83 cm) |
|
Overall Height |
41″ (104.14 cm) |
43.5″ (110.49 cm) |
48.75″ (123.83 cm) |
59.25″ (150.5 cm) |
|
Width |
5″ (12.7 cm) |
5″ (12.7 cm) |
5″ (12.7 cm) |
5″ (12.7 cm) |
|
Depth |
9.63″ (24.46 cm) |
9.63″ (24.46 cm) |
9.63″ (24.46 cm) |
9.63″ (24.46 cm) |
|
Rated Load (RL) |
4,660 lbs (2,113 kg) |
4,660 lbs (2,113 kg) |
4,660 lbs (2,113 kg) |
4,660 lbs (2,113 kg) |
|
RL on upper 12″ (30.5cm) |
– |
– |
– |
2,660 lbs (1206 kg) |
|
Tested Load (TL) |
7,000 lbs (3,175 kg) |
7,000 lbs (3,175 kg) |
7,000 lbs (3,175 kg) |
7,000 lbs (3,175 kg) |
|
TL on upper 12″ (30.5cm) |
– |
– |
– |
4,000 lbs (1,814 kg) |
|
Winching Capacity |
5,000 lbs (2,268 kg) |
5,000 lbs (2,268 kg) |
5,000 lbs (2,268 kg) |
5,000 lbs (2,268 kg) |
|
Clamping Capacity |
750 lbs (340 kg) |
750 lbs (340 kg) |
750 lbs (340 kg) |
750 lbs (340 kg) |
|
Weight |
25 lbs (11.35 kg) |
26.35 lbs (11.95 kg) |
27.66 lbs (12.55 kg) |
30.12 lbs (13.66 kg) |
