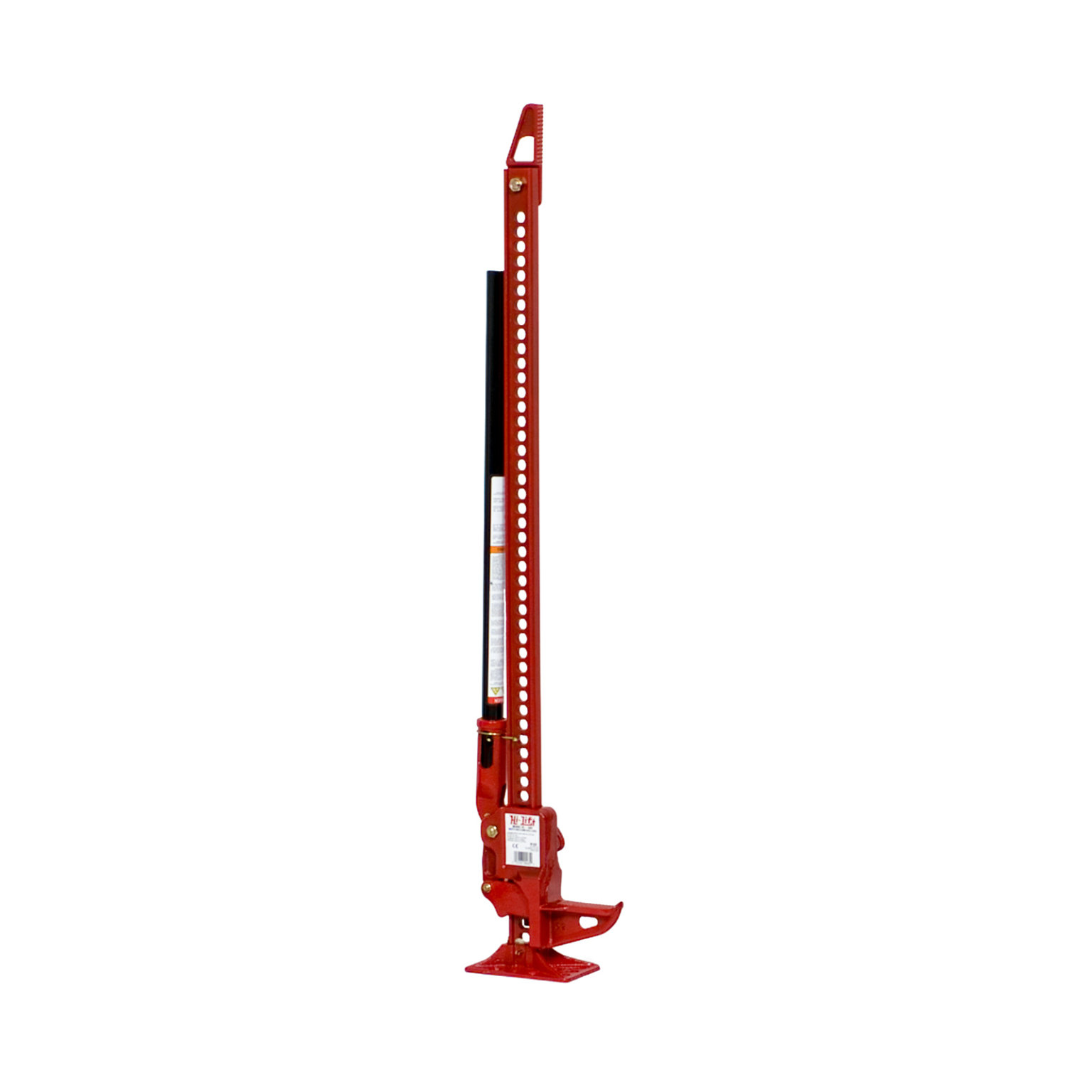

Hi-Lift® All-Cast Jack
The Hi-Lift All Cast Jack is manufactured by the Hi-Lift Jack Company they are the only all-cast jack in the world today. Our casting jack is made of high yield and tensile strength iron castings, the same long-lasting metal we’ve been using for over a century.
- All Cast Construction.
- Capacity tested at 7000lb (3175.14kg).
- Height options include 42″, 48″, and 60″. Lifts, Winches, Clamps, and More (107, 122, and 152cm)
The most robust design. - ASME B30.1-2015 relevant requirements were tested and certified.
Specifications
|
HL-425 |
HL-485 |
HL-605 |
|
|
Size |
42” (107 cm) |
48” (122 cm) |
60” (152 cm) |
|
Min. Lift Height |
4.5″ (11.43 cm) |
4.5″ (11.43 cm) |
4.5″ (11.43 cm) |
|
Max. Lift Height |
34″ (86.36 cm) |
38.63″ (98.12 cm) |
49.75″ (126.37 cm) |
|
Overall Height |
46″ (116.84 cm) |
50.75″ (128.91 cm) |
61.75″ (156.85 cm) |
|
Width |
5″ (12.7 cm) |
5″ (12.7 cm) |
5″ (12.7 cm) |
|
Depth |
9.63″ (24.46 cm) |
9.63″ (24.46 cm) |
9.63″ (24.46 cm) |
|
Rated Load (RL) |
4,660 lbs (2,113 kg) |
4,660 lbs (2,113 kg) |
4,660 lbs (2,113 kg) |
|
RL on upper 12″ (30.5cm) |
– |
– |
2,660 lbs (1206 kg) |
|
Tested Load (TL) |
7,000 lbs (3,175 kg) |
7,000 lbs (3,175 kg) |
7,000 lbs (3,175 kg) |
|
TL on upper 12″ (30.5cm) |
– |
– |
4,000 lbs (1,814 kg) |
|
Winching Capacity |
5,000 lbs (2,268 kg) |
5,000 lbs (2,268 kg) |
5,000 lbs (2,268 kg) |
|
Clamping Capacity |
750 lbs (340 kg) |
750 lbs (340 kg) |
750 lbs (340 kg) |
|
Weight |
27.78 lbs (12.6 kg) |
28.16 lbs (12.77 kg) |
31.31 lbs (14.2 kg) |
