WARN M15 12V Heavyweight Winch – 47801

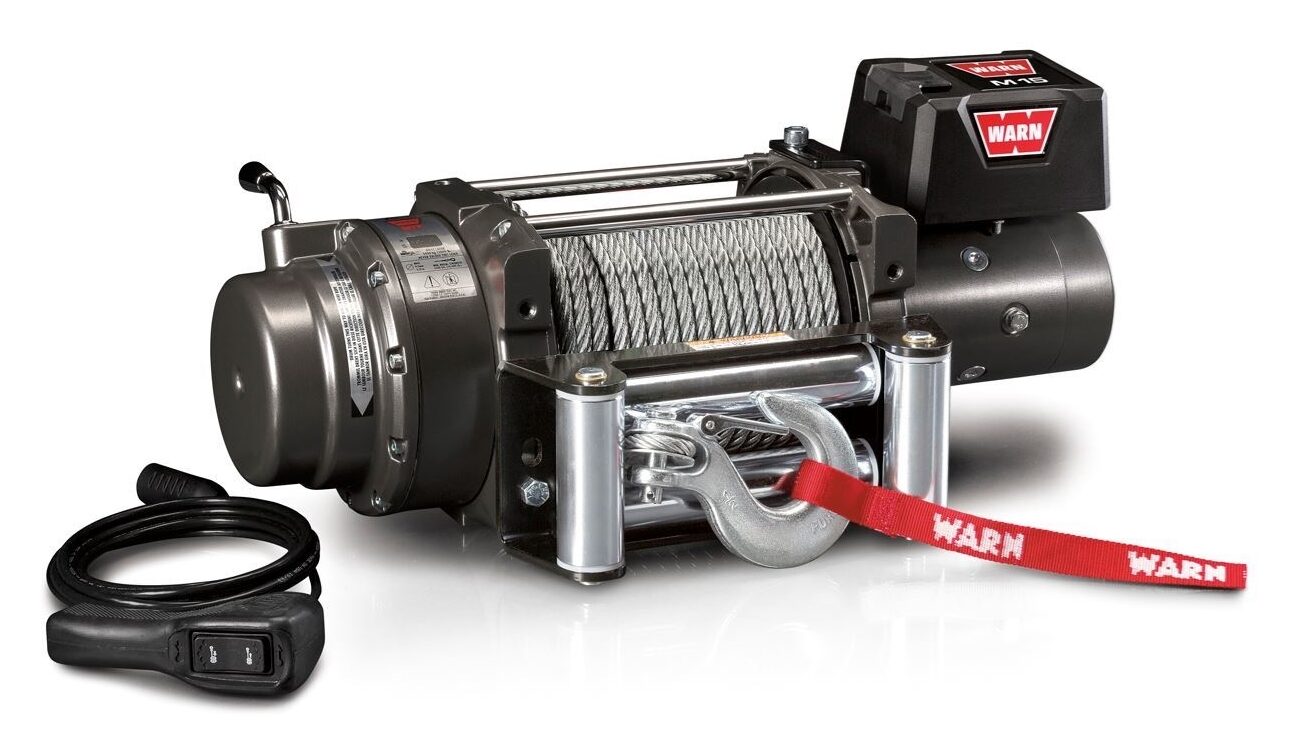

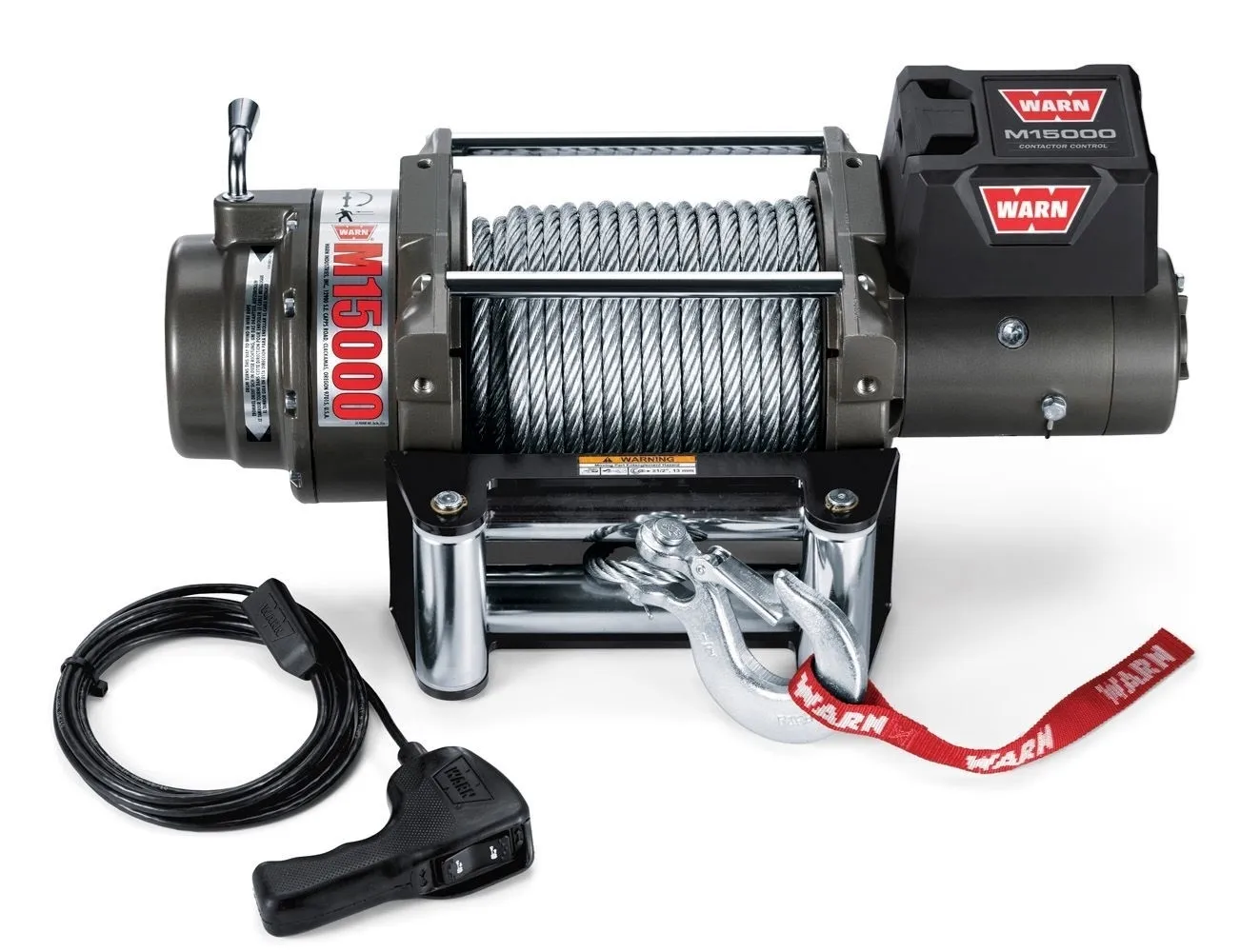

This Warn Industries M15000 Series 12 volt electric winch is vehicle mounted and has a 15,000 pound pull capability. It features a wire rope that is 90 feet long. Please keep in mind that this winch will require a winch mount for proper installation.
Please keep in mind that this winch will require a winch mount for proper installation.
When you labor hard enough to require a large vehicle, you’ll need a Winch with sufficient capacity. The Warn Winch has high strength carrier plates that can withstand the gear train strains of a 15,000 pound load. The gear ratio is 315:1, and the rope is 90 feet long and has a huge latching hook. The control pack is intended to provide ample clearance and ease of access.
- The Most Potent Winches On The Market
- Heavy Gear Train Stresses Can Be Handled By High Strength Carrier Plates With A Pulling Capacity Of Up To 16,500 Pounds
- Mechanical Components have a limited lifetime warranty. Electrical components have a seven-year guarantee.
Specifications
| TYPE | Electric |
| MOUNT TYPE | Vehicle Mounted |
| RECOMMENDED USE | Vehicle Recovery |
| VOLTAGE | 12 Volt |
| MOTOR HORSEPOWER | 4.6 Horsepower |
| ELECTRICAL CONTROL TYPE | Contactors |
| MOTOR TYPE | Series Wound |
| THERMAL SHUTOFF | No |
| DRIVE GEAR TYPE | Planetary |
| GEAR REDUCTION RATIO | 315:1 |
| FREE SPOOLING | Yes |
| BRAKE TYPE | Mechanical Cone |
| LINE DIAMETER (IN) | 7/16 Inch |
| LINE LENGTH (FT) | 90 Feet |
| LINE MATERIAL | Steel |
| FAIRLEAD TYPE | Roller |
| CONFORMS TO J706 STANDARDS | No |
| REMOTE TYPE | Handheld Remote Switch |
| MOUNTING HOLE QUANTITY | 4 |
| OPERATION TYPE | Automatic |

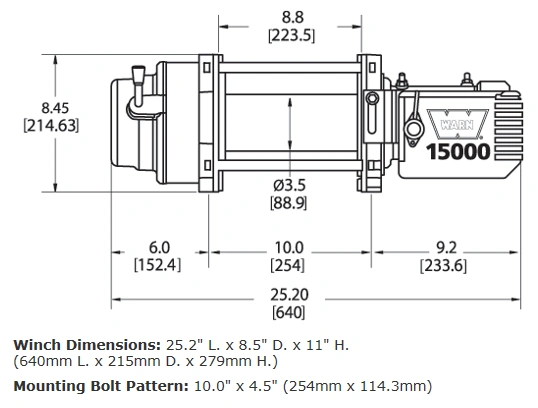

| MOUNTING PATTERN LENGTH (IN) | 10 Inch |
| MOUNTING PATTERN WIDTH (IN) | 4-1/2 Inch |
| INCLUDES MOUNTING HARDWARE | No |
| COLOR | Gray |

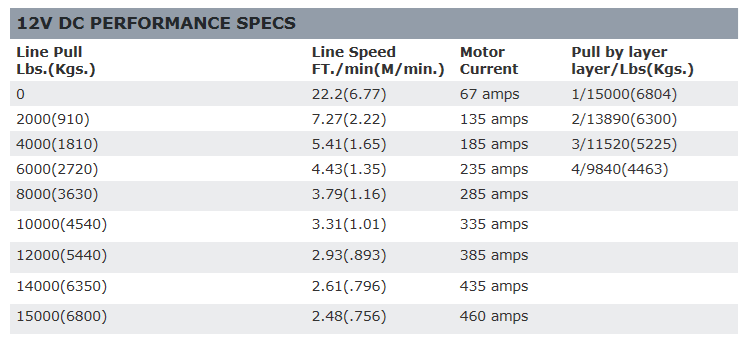

| MAX LINE PULL/ LINE SPEED | 15000 Pound/ 2.48 Feet Per Minute |
| MAX AMP DRAW/ LINE PULL | 460 Amp Draw/ 15000 Pound |
